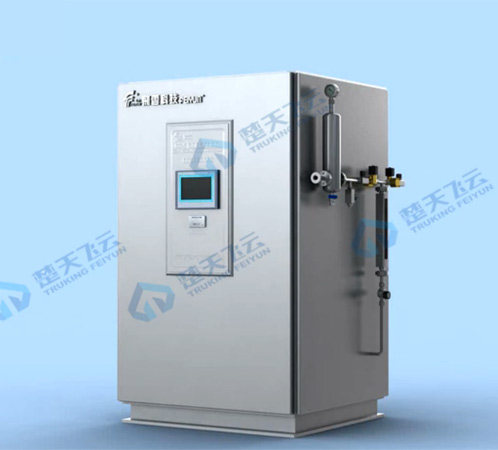

QCN Medical High-purity Nitrogen Generator

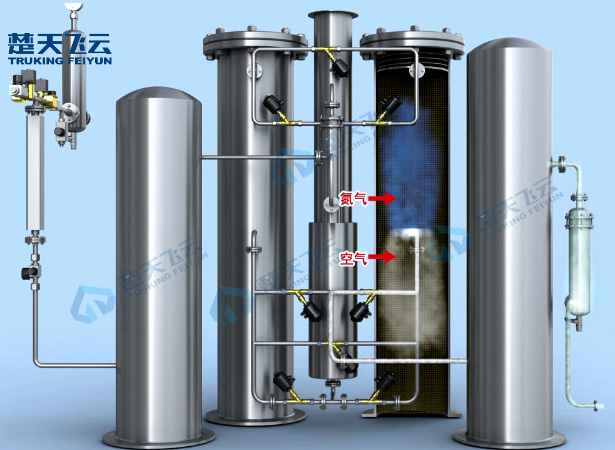

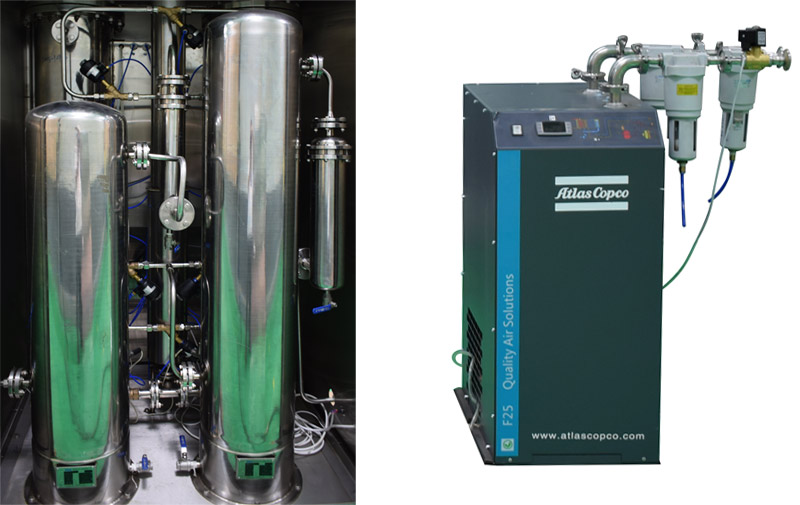

        QCN series nitrogen generator is a high purity nitrogen generator, suitable for supplying nitrogen for the production of ampoule, vial and infusion in pharmaceutical industry, also it applies to foodstuff, biochemistry industry etc. It includes three sub-systems: compressed air post treatment system, PSA pressure transforming adsorption system and air fine filtering and sterilizing system.

Video

Performance and Features:
1. The purity of nitrogen reaches 99.99% without pyrogen and bacterium, meets the requirement of international pharmaceutical "GMP" standard.
2. Adopting the latest PAS nitrogen generating process, unique design of adsorber structure and completely polished stainless steel in order to make sure of production of high-purity nitrogen(purity is higher than international standard).
3. Adopting international famous brand components to assure the long life of machine.

4. Adopting MITSUBISHI PLC and KY-2N analyzer, the whole system is under PLC automatic control and monitor, so that it doesn't need on-duty workers to watch and operate. According to the customers’ requirements, we can design advanced options: Man-Monitor-Interface, PLC, transformer digital design, all kinds of parameters display in-time dynamically, automatic monitoring.

Model	QCN-1	QCN-5	QCN-10	QCN-20
Productivity	1m3/h	5m3/h	10m3/h	20m3/h
Purity	≥99.999%	≥99.999%	≥99.999%	≥99.999%
Outlet Pressure	0.3Mpa(表压)	0.3Mpa(表压)	0.3Mpa(表压)	0.3Mpa(表压)
Compressive air	0.4 m3 /min	0.81 m3 /min	2 m3 /min	3.6 m3 /min
Power	220V/50HZ	220V/50HZ	220V/50HZ	220V/50HZ
Power(exclude air compressor)	1.2KW	1.25KW	1.5KW	1.8KW
Overall size	853×705×1500mm	1180×980×1950mm	1480×1180×2115mm	1800×1450×2400mm
Weight	300Kg	700 Kg	1100 Kg	1600 Kg
