NJP1200 Full-Automatic Capsule Filling Machine

NJP1200 Full-Automatic Capsule Filling Machine

<Full-Automatic Capsule Filling Machine>professional standard of drafing enterprise  JB 2005-2012

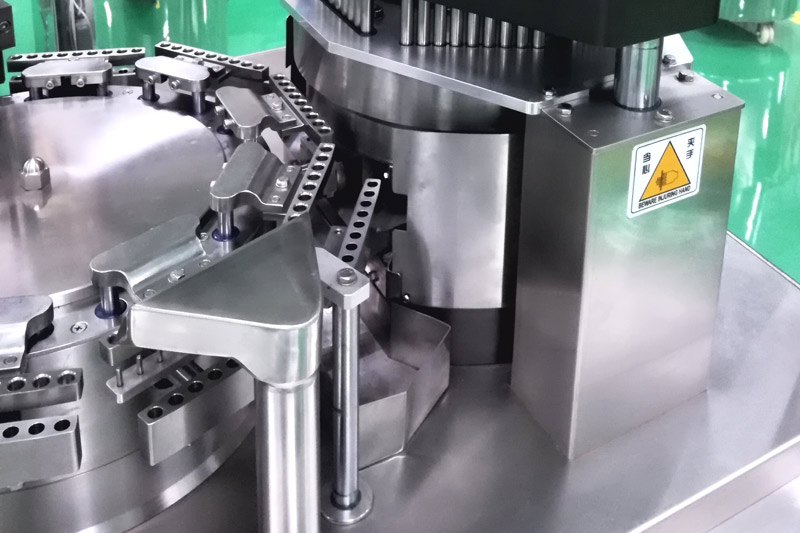

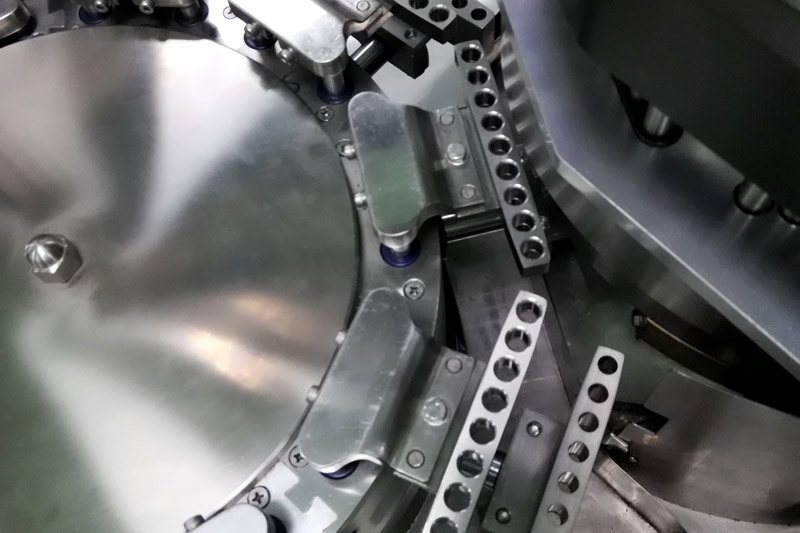

This machine is a intermittent full automatic capsule filling machine with multiple tamping stations, precise design and stable performance. It can completes the following process: feeding capsule, separating capsule, filling, rejecting defective capsule, closing capsule, discharging finished capsule automatically. It adopt closed rotary table with twelve station. There are 9 holes in four rows crossing on the module. Function of machine reach international advanced standard, which also meet the requirement of  GMP and FDA standard.  It's absolutely the most ideal machine for producing capsule products.

Performance and Features:
1)  Output : 72000capsules /hour

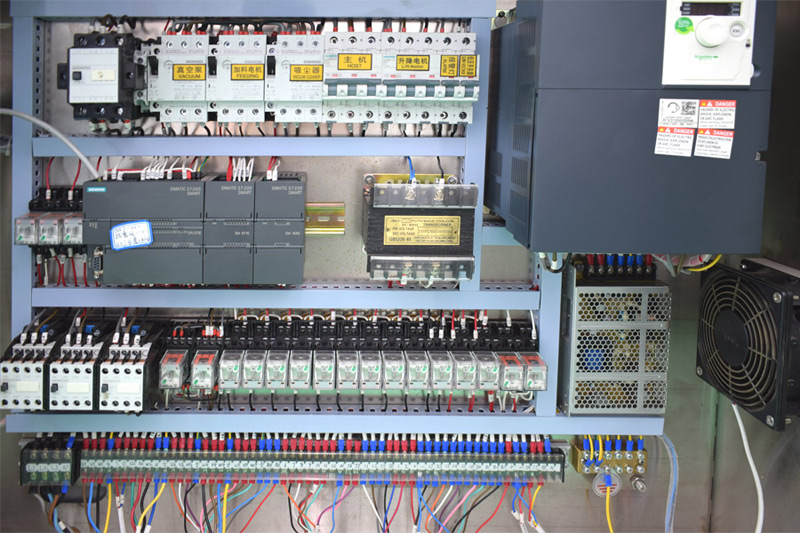

2)  Change speed by transducer ,PLC control (C type)
3)  Easy to operate and install
4)  Function for filling powder,pellet,granule and pill into capsule.
5)  Automatic detections and diagnosis of lack of material, capsule and mechanical trouble,make alarm and stop automatically.
6)  Displaying in-time speed and accumulative output.
7)  Available for electronic signature and recording, and Industrial recording and Industrial Ethernet（for optional）.

Spesfications
Productivity	1200 pcs/min
Number of hole	9 holes
Size of Capsule	00～5#
Filling Percentage	≥99.8%
Dosing Precision	≤±3
Power supply	380V 50HZ
Power	5.8kw
Water supply	500L/H     0.1~0.2Mpa
Dust collector	210 m3/H
Compressed air	0.2 m3/min   4~6kg
Noisy	≤70db

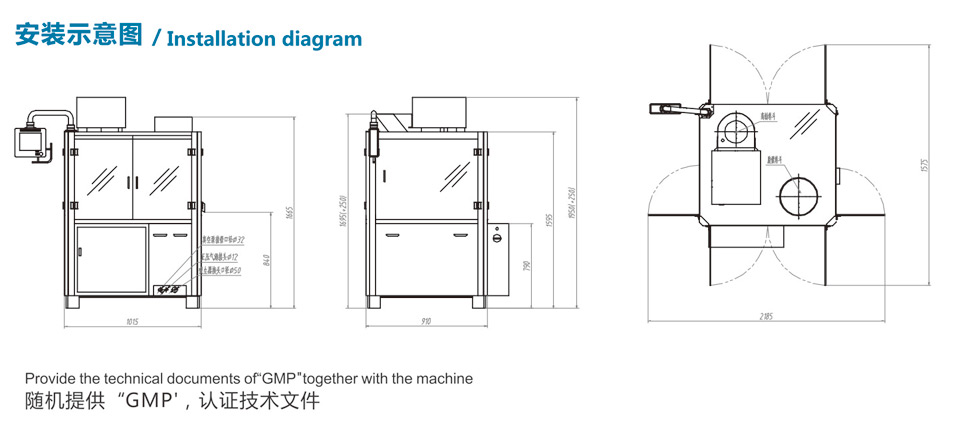

Overall dimensions	1215×910×1934(+250）mm
Weight	1200kg
